Storefront screens that read in direct sun.

High-brightness window displays: how to spec storefront digital signage that actually works

The storefront window is the highest-leverage advertising surface a retailer owns. Sidewalk traffic, drive-by traffic, walk-up traffic — every shopper inside a quarter-mile catchment passes the front of the store before they decide whether to walk in. For most retail formats, the storefront window does more advertising work in a year than every paid digital channel combined. And for the last fifteen years, that surface has been run on vinyl decals, paper posters, and the occasional consumer TV that lasted six months and faded in three.

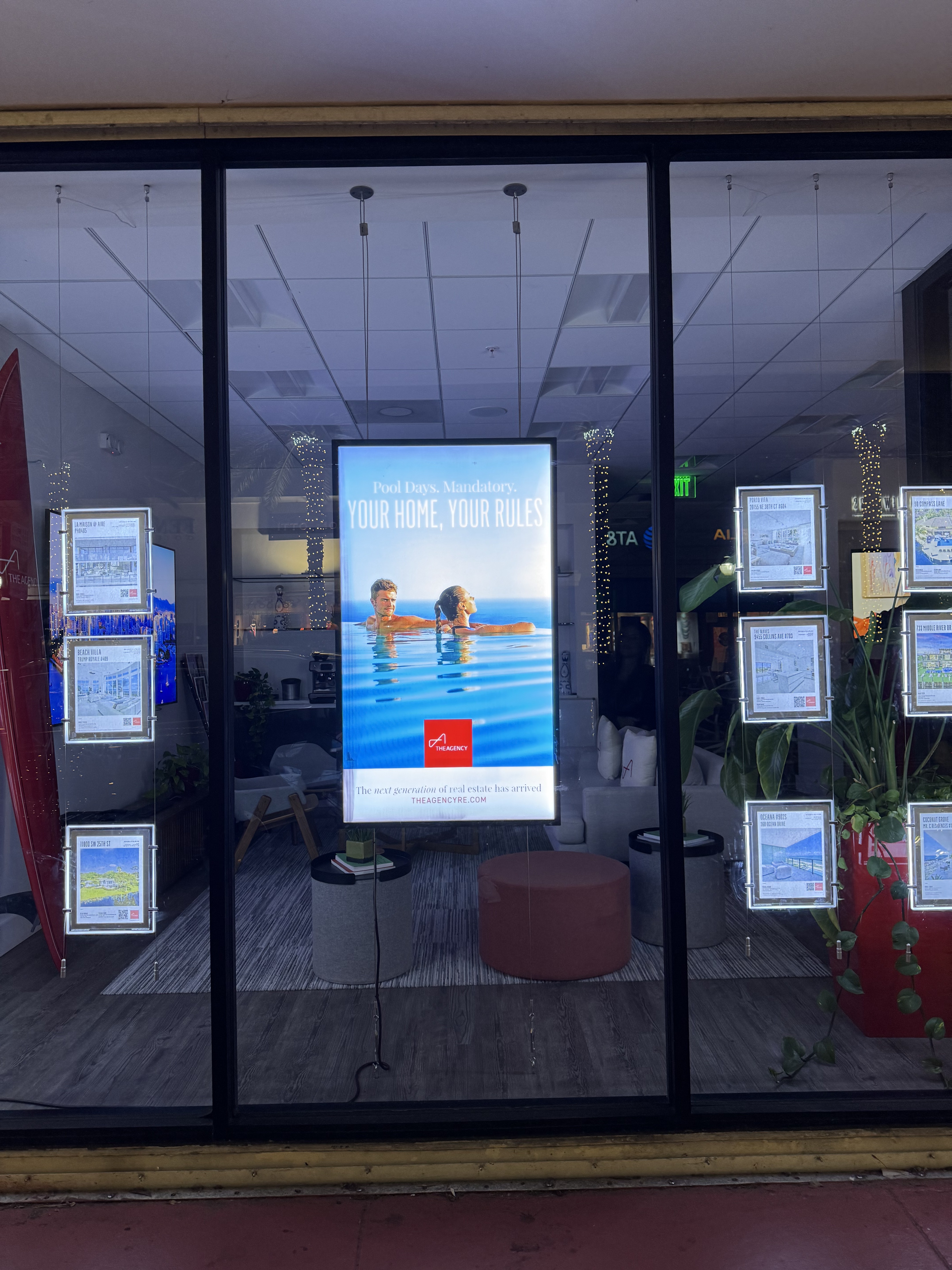

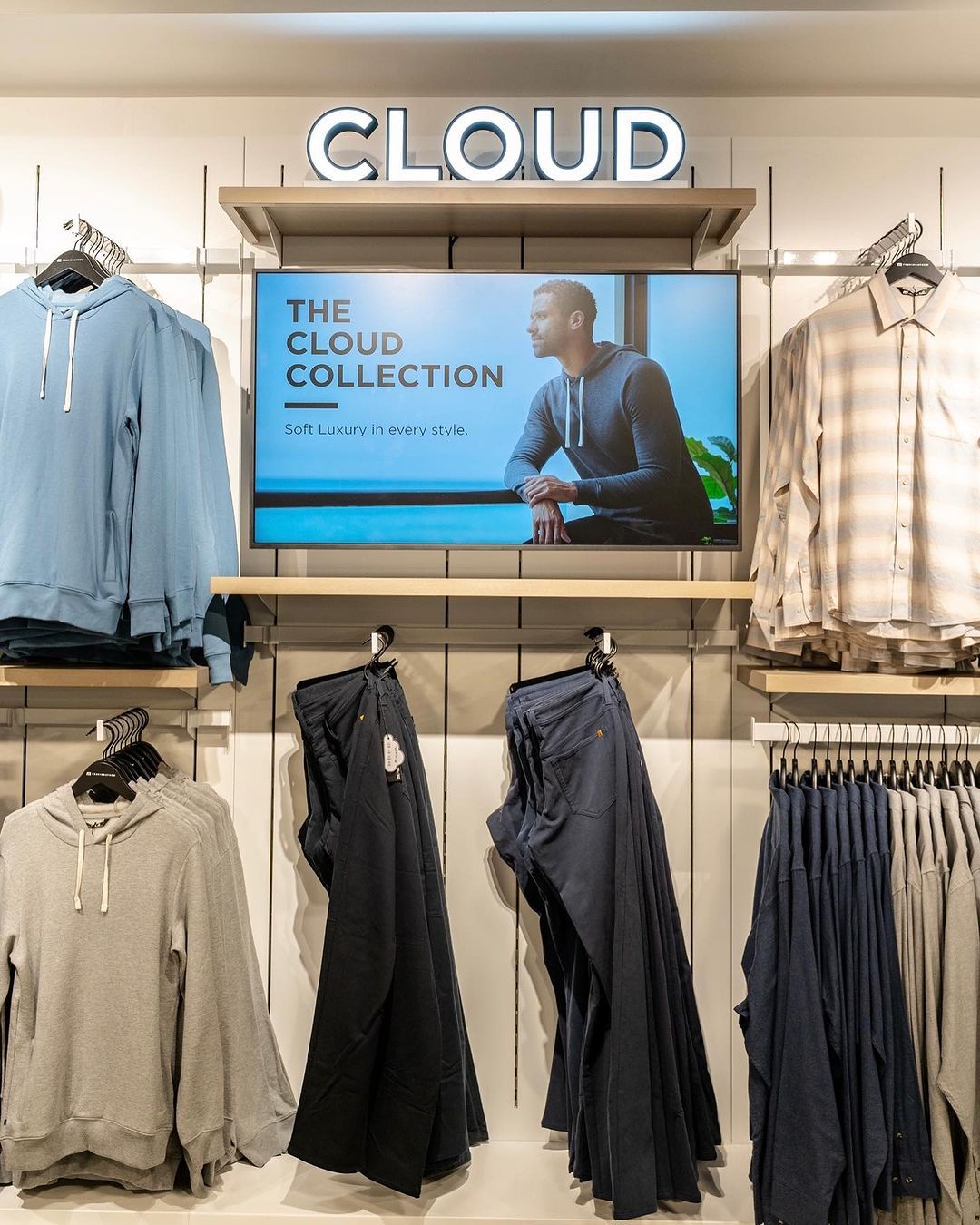

Sun-readable storefront displays change that. CrownTV ships Samsung's high-brightness window display lineup — high-brightness window-facing at 2,500–3,000 nits for behind-glass installs, commercial-grade indoor tuned for high-ambient interiors at 16/7 commercial duty, and outdoor IP56-sealed outdoor digital window displays at 3,500–4,000 nits in IP56 sealed enclosures for any exterior placement. Same Samsung Authorized Reseller pricing, same nationwide install crew that has done over 1,000 storefront window display deployments, same one project manager from quote to commissioning. The same panels you have walked past at L'Occitane Fifth Avenue, Victoria's Secret Fifth Avenue, Janie and Jack, TravisMathew, Bonobos, Cole Haan, CBD Kratom, Pomegranate, and the brokerage windows of The Agency in SoHo.

What changed: brightness, heat tolerance, and warranty terms

A consumer TV at 350 nits is invisible the moment direct sun hits the storefront glass. A 500-nit mid-tier commercial display fades to a grey rectangle by 11am in a south-facing window. The high-brightness window-facing window display starts at 2,500 nits and the outdoor IP56-sealed outdoor digital window display starts at 3,500 nits — six to twelve times the output of a consumer panel, and the difference is visible from across a four-lane road. Layer in active fan cooling, internal temperature sensors, panel-protection logic, and a 50,000-hour LCD lifespan rated for 24/7 operation, and the whole reliability equation flips. We have window panels in our network that have been running 24/7 since 2019 without panel failure.

Heat is the second failure mode. Greenhouse effect inside a south-facing window cavity pushes glass-cavity temperatures past 140°F on a clear summer afternoon. A consumer LCD warps, the polarizer film separates from the panel, and permanent cloud spots appear inside the panel within one season. the high-brightness, indoor commercial, and outdoor IP56-sealed panels ship with active fan cooling, internal temperature sensors, and automatic brightness throttle on overheat. The Samsung commercial warranty applies in commercial use — consumer TV warranties void the moment the panel runs in a storefront, which is why retailers who try to save money with a Best Buy TV end up paying for the panel twice within 18 months.

high-brightness, indoor commercial, outdoor — when to use which

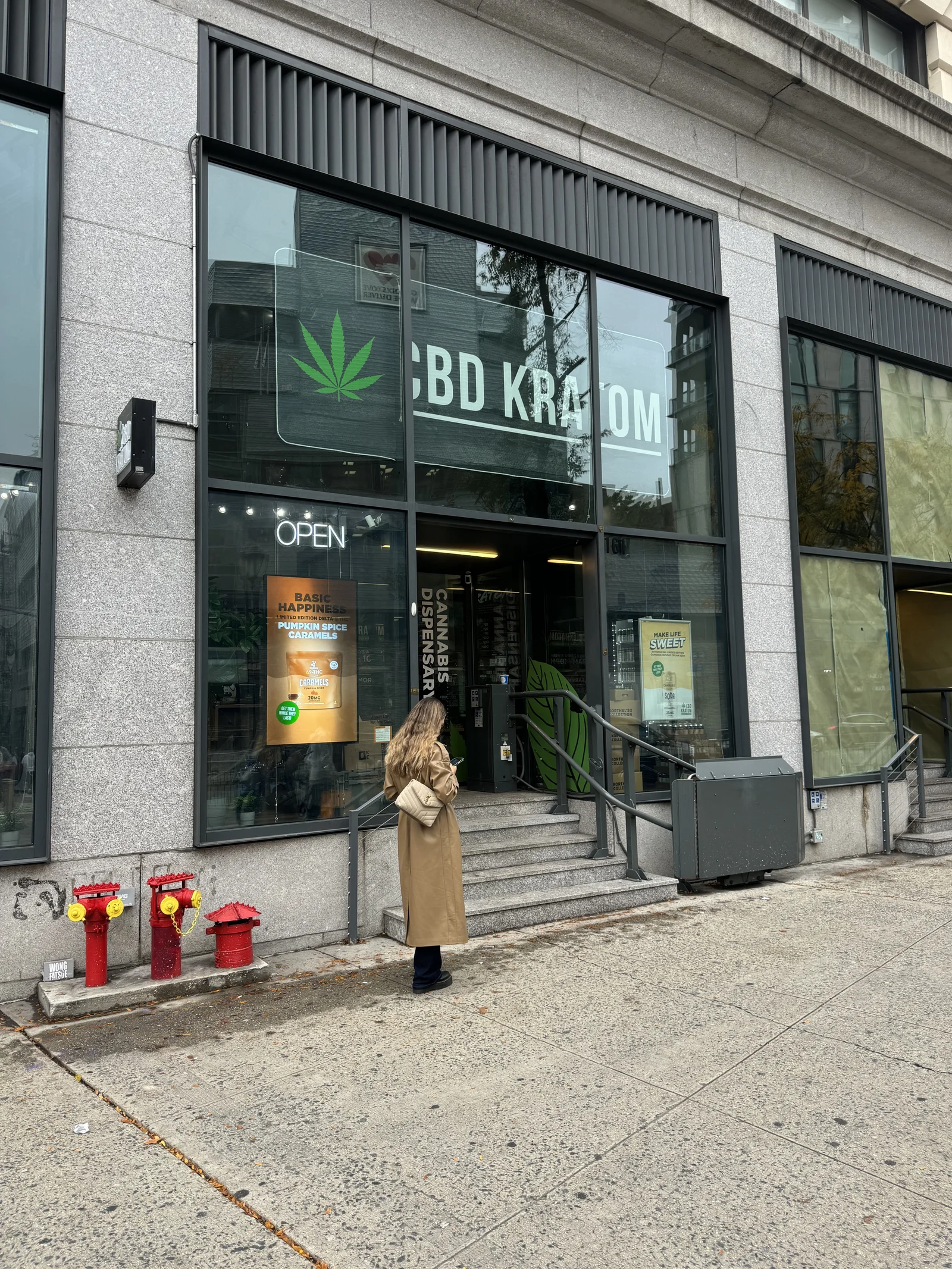

high-brightness window-facing is the standard high-brightness storefront window display. Behind-glass install, 24/7 commercial duty, anti-glare coating built in. The 46" and 55" sizes are the most-shipped configurations for boutique retail and bank branch storefronts. The 65" and 75" handle the larger flagship glass found in apparel retail and specialty grocery. L'Occitane runs high-brightness window-facing across the 150-store program. CBD Kratom runs high-brightness window-facing across the multi-location chain. Janie and Jack runs synchronized 55" window pairs in mall storefronts. The 75" high-brightness window-facing at peak brightness draws roughly 540W — a dedicated 20-amp circuit, sized at survey, run by the licensed electrician on the install crew.

Samsung commercial-grade indoor is the right pick for mall corridors and climate-controlled behind-glass installs that close overnight. 16/7 commercial duty (built for stores that operate inside a typical retail day cycle). Lower brightness than high-brightness window-facing, lower price point, same Samsung commercial warranty. Mall storefronts in interior corridors run indoor commercial more often than high-brightness window-facing because the indirect lighting environment doesn't demand 3,000 nits.

outdoor IP56-sealed is the outdoor digital window display — the only Samsung SKU with an IP56 sealed enclosure rated against direct rain, salt spray, dust ingress, and high-pressure water jets. Drive-thru menu boards, gas-station forecourts, sidewalk pylons, and any exterior wall mount that sees weather. Hello Boba runs outdoor IP56-sealed on a mobile QSR food truck — the panel handles vibration, sun, and rain spray, all on the same CrownTV Dashboard managing the brick-and-mortar fleet. outdoor IP56-sealed is also the right pick for any exterior signage in a coastal market where salt spray would corrode a non-sealed panel within a year.

The hybrid window video wall — flagship retail's signature moment

The flagship-grade hybrid window video wall is a different scope. Victoria's Secret Fifth Avenue runs four 98" displays plus six 85" indoor displays in this configuration. CrownTV media players synchronize content in pairs, with separate content scheduled in the Victoria Cafe. L'Occitane Fifth Avenue runs a hybrid 98" + 85" video wall in the Manhattan flagship — high-brightness window-facing high-brightness window-facing paired with commercial-grade interior tiles. Sub-millimeter bezel-to-bezel tiling, frame-accurate playback synchronization, all on one CrownTV Dashboard. Pricing on this tier ranges $10,000–$15,000+ per panel installed, and the install scope includes engineered video-wall mounting hardware with X / Y / Z and tilt micro-adjust per tile so installers can level every panel to sub-millimeter precision.

What CrownTV bundles into a storefront install

Most signage projects fail at install, not at the panel. Window displays are particularly unforgiving because the install requires items that hardware-only sellers leave out of the quote: site survey for glass type and cavity heat, dedicated 20-amp circuit sized at survey, licensed electrician to run conduit, engineered window mount sized for panel weight and glass clearance, through-glass cabling routed through the wall not zip-tied across the ceiling, permitting per municipality, and content commissioning handed off live rather than as a Dropbox folder. CrownTV bundles all of it into one quote, one contract, one project manager. Standard turnkey deployment is under one week.

The site survey is where the install lives or dies. We confirm glass type (clear, low-iron, mirror-finish, tinted), cavity depth, sun exposure, ambient temperature, and sidewalk visibility angle. We model the worst-case heat load on south-facing cavities (which run 30–50°F hotter than ambient) and confirm the panel's active cooling can hold the rated duty cycle. We pull permits — storefront signage permits, exterior pylon permits, drive-thru menu-board permits, ADA clearance review — per municipality before the install date is set. None of this is optional, and none of it is on the quote when you buy a high-brightness window-facing direct from a hardware reseller.

What it actually costs

Real installed-price ranges from CrownTV deployments shipped in the last 12 months: $2,500–$5,500 per unit installed for OM-46 / OM-55 storefront, single panel; $4,500–$9,500 for OM-65 / OM-75; $6,500–$12,500 for outdoor IP56-sealed outdoor (drive-thru, pump-top, exterior wall); $10,000–$15,000+ per unit for hybrid window video walls (Victoria's Secret Fifth Avenue, L'Occitane Fifth Avenue). Hardware, mount, dedicated-circuit electrical, content commissioning, and one year of CrownTV Dashboard are all included. Volume pricing kicks in at 5+ units. Quote SLA is 4 business hours, Mon–Fri 9am–6pm ET.

FDA Section 4205 calorie compliance for QSR drive-thru menu boards

Drive-thru menu boards installed on the outdoor IP56-sealed outdoor digital window display platform are subject to FDA Section 4205 calorie-disclosure requirements for chains over 20 locations. Our content team designs FDA-compliant drive-thru menu boards with calorie counts on every standard item, allergen icons, ingredient disclosures, and the variation language required for chains. The same dashboard pushes calorie-updated content to every drive-thru in the chain when a recipe changes — no separate compliance pass, no separate print run, no risk of a stale calorie count being on the wall while corporate updates the spec.

Why nobody else bundles this

The standard signage industry pattern is to sell hardware as a SKU, install as a separate project from a third-party integrator, content as a third workflow, software as a fourth subscription, and warranty as a fifth conversation when something fails. CrownTV ships all five under one contract — Samsung Authorized Reseller hardware, CrownTV nationwide install crew, in-house content team, CrownTV Dashboard CMS, and a 48-hour replacement promise during active contract. One project manager from quote to commissioning. One number to call when something fails. One invoice. The reason 1,000+ storefront window displays are running on this stack today is that the operator only has to manage one vendor.
