Samsung OH55A-S: The 55-Inch Outdoor IP56 Display Buyer's Guide

The moment a digital signage project moves from indoors to outdoors — drive-thru menu boards, gas station forecourts, transit platforms, stadium concourses, building exteriors — the panel choice shifts entirely. A window-facing OM55B can't survive Phoenix in July or Minneapolis in February. The display category you actually want is the all-in-one outdoor sealed unit, and the modern Samsung answer is the Samsung OH55A-S: 55 inches, 3,500 nits, IP56-sealed front, full outdoor operating range from -22°F to 122°F.

CrownTV is a Samsung Authorized Reseller and we've installed OH-series outdoor panels at gas station forecourts, QSR drive-thru lanes, ski resort lift-line wayfinding, and stadium concourses across the country. The OH55A-S is the modern replacement for the legacy OH55F that retail and QSR operators have been running since 2018-2019. This guide covers what makes a panel "outdoor," how the OH55A-S is engineered for that fight, what it costs, and how to install it without making the most common mistakes.

What Makes a Display "Outdoor"

Three specifications distinguish a true outdoor signage display from a high-brightness window panel:

1. IP rating. Ingress Protection. The OH55A-S is rated IP56 on the front face — protected against high-pressure water jets and complete dust ingress. The rear is IP54 (rain and splash protection but not direct hose-down). For comparison, the indoor OM55B has no IP rating at all.
2. Operating temperature range. The OH55A-S runs from -22°F to 122°F (-30°C to +50°C). Indoor commercial displays bottom out at 32°F (0°C). The OH includes integrated heaters for sub-freezing operation and active cooling for triple-digit ambient temperatures.
3. Sun-readable polarizer + anti-reflective coating. 3,500 nits combined with optical bonding between the LCD layers eliminates the rainbow-effect (Sunlight Readable Polarizer issue) that polarized sunglasses cause on cheaper outdoor panels.

OH55A-S Specifications

• Screen size: 55" class
• Resolution: Full HD (1920 × 1080)
• Brightness: 3,500 nits typical, with auto-brightness sensor
• Contrast ratio: 5000:1
• IP rating: IP56 (front face), IP54 (rear)
• Operating temperature: -22°F to 122°F (-30°C to +50°C)
• Operating humidity: 10–80% non-condensing, with built-in heater for cold-climate condensation control
• Cooling/heating: Integrated heater + active fan
• Operating system: Samsung Tizen with built-in System on Chip media player
• Connectivity: 2× HDMI, DisplayPort, USB, RJ45 Ethernet, Wi-Fi via dongle, RS-232C
• Sun sensor: Auto-brightness adjustment based on ambient light
• Glass: Tempered, anti-reflective, sun-readable polarizer compatible
• Weight: Approx. 90 lbs
• Power consumption: 380W typical, 580W peak (heater operation in cold weather)
• Duty cycle: 24/7

The "S" suffix denotes the second-generation single-sided sealed chassis with refined cooling and a slimmer form factor than the original OH55F. For double-sided outdoor (drive-thru menu boards visible from both lanes), Samsung offers the OH-D series.

Who Should Buy the OH55A-S

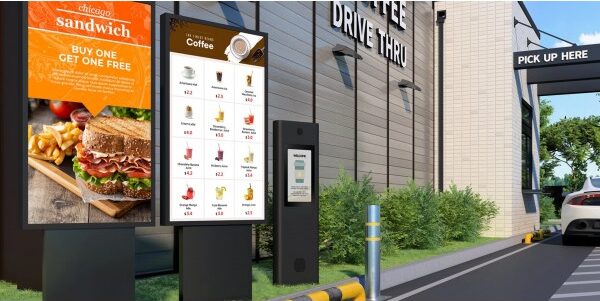

• Quick-service drive-thru lanes. Order-confirmation boards, preview boards, lane wayfinding. Two boards per lane is standard, and the OH55A-S is the right panel size for that application.
• Gas station and convenience-store forecourts. Fueling-island promotions, weather-protected signage under canopies, exterior brand panels. The IP56 rating handles the canopy edge environment.
• Building entrances and exterior wayfinding. Hotel valet stands, building lobby exteriors, transit platform information boards. -22°F operation matters for the northern half of the country.
• Stadium concourses and outdoor venues. Concession ordering, sponsor displays, outdoor club-level wayfinding. The combination of brightness, weather sealing, and 24/7 duty cycle is the spec set these venues require.

Where the OH55A-S is overkill: storefronts where the panel sits behind glass (use the OM55B — half the price for the indoor application), and any indoor space (use a Samsung QM- or QB-series indoor commercial display).

OH55A-S vs OH55F (Legacy) vs Competitors

Panel	Brightness	IP rating	Operating temp	Status
Samsung OH55A-S	3,500 nits	IP56 / IP54	-22°F to 122°F	Current — modern replacement
Samsung OH55F (legacy)	2,500 nits	IP56 / IP54	-22°F to 122°F	Discontinued — replacement is OH55A-S
Samsung OH46B	3,500 nits	IP56 / IP54	-22°F to 122°F	46" sibling for tighter spaces
LG XE4F 55"	4,000 nits	IP56	-30°C to +50°C	Comparable — slightly brighter
Peerless-AV outdoor enclosure + 55" commercial panel	1,500-2,500 nits depending on internal panel	NEMA 4 / 4X	Variable

The OH55A-S is the cleanest factory-sealed answer for IP56 outdoor signage at 55". The LG XE4F is the cross-shop competitor with marginally higher peak brightness — we deploy both. The Peerless-AV enclosure approach (enclosure + a commercial panel inside) gives you flexibility on size but adds project complexity, integration time, and a higher failure surface — we only recommend that path when the application is something the OEMs don't make natively.

For broader context on outdoor signage selection, see our High-Brightness Outdoor TVs guide.

OH55A-S as the Modern OH55F Replacement

If you're an existing Samsung outdoor customer running OH55F panels from a 2018-2020 install, the OH55A-S is the direct upgrade. Mounting hardware is largely backward-compatible. The new chassis is slimmer, brighter (3,500 vs 2,500 nits), and runs the modern Tizen platform. Power and signal connectors are the same. The migration path is straightforward — typically a half-day swap per location with no electrical or structural changes.

For deep installation context including OH55F install patterns, see Installing the Samsung OH55F + OH46F outdoor displays.

Drive-Thru Application: The Math

QSR drive-thru is the highest-volume use case for the OH55A-S. A few realities every operator should plan for:

• Two panels per lane is standard. A preview board near the speaker post and an order-confirmation board at the window. Multi-lane locations need 4-6 panels.
• Sun direction matters more than weather rating. An east-facing board gets blasted at breakfast service. A west-facing board takes the dinner-rush sun. Spec auto-brightness sensors and pole orientation for the worst-case angle.
• Wind load on a 55" pole-mounted panel is real. Mount engineering should be done by someone who can produce a stamped wind-load calculation, not a contractor improvising at the install site.
• Daypart scheduling matters. The OH55A-S can dim to ~10% brightness overnight. Don't run 3,500 nits at 3 AM — you're wasting backlight life.

For full drive-thru and QSR application context, see our restaurant and QSR industry page.

Installation Considerations

Mounting

VESA 400 × 400. For drive-thru: pole mounts engineered for the panel's 90 lb weight plus wind load. For canopy / forecourt: heavy-duty wall or ceiling mounts rated for outdoor temperature swings. For building exterior: through-wall structural mount with weatherproof gasket where the mount penetrates the building envelope.

Power

The OH55A-S draws up to 580W with the heater running on a cold morning. A dedicated 20-amp circuit per panel is standard. Don't share power circuits with other site equipment — surge events on shared circuits damage outdoor signage faster than weather does.

Lightning and Surge Protection

Every outdoor panel should run through a surge protector rated for outdoor electrical service. Not optional. We've watched panels die from lightning-adjacent surges that took out a panel, a player, and a network switch in a single event. A $200 surge protector is cheap insurance.

Cabling

HDMI runs over 25 feet outdoors should use HDBaseT extenders or fiber-optic HDMI. Pull a redundant Cat6 alongside the primary — one for the player, one for spare. Outdoor Ethernet runs need direct-burial cable, not indoor Cat6.

Service Access

Plan for it. The panel will need a service visit at some point — a stuck cooling fan, a connector that wiggled loose, a firmware update. If the install crew mounts the panel in a position that requires a 30-foot lift to reach, every service call costs you a lift rental. Make access easy.

Full install services: CrownTV installation or the complete turnkey package.

Real CrownTV Outdoor Deployments

• Multi-location QSR drive-thru rollouts. Dual-board OH55A-S installs with auto-brightness, daypart scheduling, and centralized menu changes pushed from headquarters via the CrownTV Dashboard.
• Convenience and gas — multi-site forecourt deployments. Canopy-mounted exterior panels with weather-protected mounting and surge protection on every circuit. See our convenience and gas industry page.
• Hospitality outdoor. Resort lobby exteriors and valet-stand wayfinding for hotel chains operating in mixed climates.
• Stadium and venue concourses. Outdoor club-level concession menus and sponsor displays running 24/7 through event seasons.

What Outdoor Signage Costs

• OH55A-S hardware: $5,500–$8,000 from CrownTV with Samsung Authorized Reseller pricing
• Mounting (pole or wall): $400–$1,500 depending on type and engineering
• Installation: $900–$2,400 per panel including electrical work
• Surge protection and outdoor cabling: $200–$600 per panel
• Power: 380W × 14 hrs/day × 365 days × $0.13/kWh = ~$253/year (more in cold climates with heater operation)
• CMS: $25-$45/screen/month — first month free with CrownTV bundles

Typical drive-thru project (2 panels): $18,000-$30,000 turnkey. See our broader Digital Signage Cost guide for context.

Frequently Asked Questions

What is IP56, and why does it matter for outdoor signage?

IP56 means the panel is protected against complete dust ingress and high-pressure water jets — what you need to survive the rain, snow, and pressure-washing that real outdoor environments produce. Lower ratings (IP44, IP54) are insufficient for direct exposure.

Can the OH55A-S handle direct rain and snow?

Yes. The IP56 rating on the front face plus the integrated heater for cold-climate condensation control mean the panel is engineered for direct outdoor exposure year-round, including snow accumulation and freezing rain.

What is the operating temperature range?

-22°F to 122°F (-30°C to +50°C). The integrated heater handles the cold side; active cooling handles the heat side. Real-world deployments in Phoenix (115°F summer days) and Minneapolis (-20°F winter mornings) both work without panel intervention.

Can I use the OH55A-S for a drive-thru menu board?

Yes — this is one of its primary use cases. Two-panel-per-lane configuration (preview + order confirmation) with auto-brightness and daypart scheduling is the standard QSR drive-thru deployment.

Does the OH55A-S support cellular failover?

Not natively. For locations where Wi-Fi reliability is questionable (rural drive-thru, remote forecourts), we add a cellular-failover router on the same circuit. This is a CrownTV-managed install option for outdoor deployments where uptime is non-negotiable.

Is the OH55A-S vandalism-resistant?

The tempered glass front face handles standard impact (basketball-level). It is not designed to withstand a rock or a baseball bat — for high-vandalism environments, look at full-anti-vandalism rated panels with thicker laminated glass and reinforced steel chassis.

How does the OH55A-S handle direct sun?

3,500-nit baseline brightness with sun-readable polarizer and auto-brightness sensor. The sun sensor reads ambient light and adjusts panel output in real time — at noon on a sunny afternoon you see full 3,500 nits; at 3 AM the panel runs at ~10% to preserve backlight life.

What's the warranty on the OH55A-S?

Samsung's standard 3-year commercial outdoor warranty, parts and labor. CrownTV bundles include the warranty plus a free one-month CMS subscription, free shipping, and a price-match guarantee.

Can the OH55A-S be installed in portrait orientation outdoors?

Yes. The chassis is rated for both portrait and landscape outdoor mounting. Portrait is common for stadium concourse wayfinding and tall-format outdoor brand panels.

What's the difference between OH55A-S and OH46B?

Same series, same IP rating, same operating temperature range. The OH46B is 46 inches and weighs ~70 lbs; the OH55A-S is 55 inches and weighs ~90 lbs. Pick by viewing distance — OH46B for tighter drive-thru lanes and shorter-distance applications; OH55A-S for standard lanes and longer-distance viewing.

How CrownTV Helps

• Samsung Authorized Reseller pricing on the OH55A-S and the entire OH/OM series
• Outdoor site survey including pole engineering and electrical coordination
• Pole-mount, wall-mount, and structural-mount installation in all 50 states
• Surge protection and outdoor-rated cabling included in CrownTV install bundles
• Dashboard-driven content scheduling with daypart auto-brightness
• Free shipping, price-match guarantee, 3-year Samsung commercial warranty (extendable to 5 years)
• Free one-month CrownTV CMS + media player bundled

Get an OH55A-S quote within four business hours →
